Troubleshooting

Finding pages in Shopify Admin

FieldsRaven uses Shopify Admin's app sidebar for navigation. The FieldsRaven app name or icon opens the Dashboard; the visible rows are Failed Ops, Ravens, Settings, and Help & Support.

Fields do not have a separate sidebar row. Open a field's Review link from Dashboard activity or Failed Ops. Field review pages use stable top-level /fields/<id> addresses; older numeric /shops/<shop-id>/... bookmarks redirect temporarily to their shopless destination. If a copied link opens outside the embedded app or cannot restore the shop session, reopen FieldsRaven from Shopify Admin → Apps and navigate from the sidebar.

Successful actions appear as a neutral Shopify toast and dismiss after about five seconds. Errors and alerts stay in a red message at the top of the page until you navigate away, so you have time to read and resolve them.

Rejections — 422

A rejected submission returns 422 with the reason in message. The messages below come straight from the app, so you can match on them.

Raven not found

Raven ID is missing or raven can't be found

The raven_id you sent doesn't resolve to a raven on this shop. Usual causes: a typo, a raven that was deleted, or an id copied from a different store — a raven id is scoped to one shop, so a dev-store id will not work in production.

Raven is switched off

Raven is inactive, activate it to be able to send messages

The raven resolves fine — it's just not active. Switch it on in the app; nothing in your storefront code needs to change.

Signature rejected

A 422 whose message is an object, not a string:

{ "message": { "valid_params": true, "valid_auth_code": false } }

Match on message.valid_auth_code === false, not on any text. The signature didn't match. raven_mac is an HMAC over raven_id + resource_id, keyed by your shop's fields_raven.api_secret metafield. It fails when:

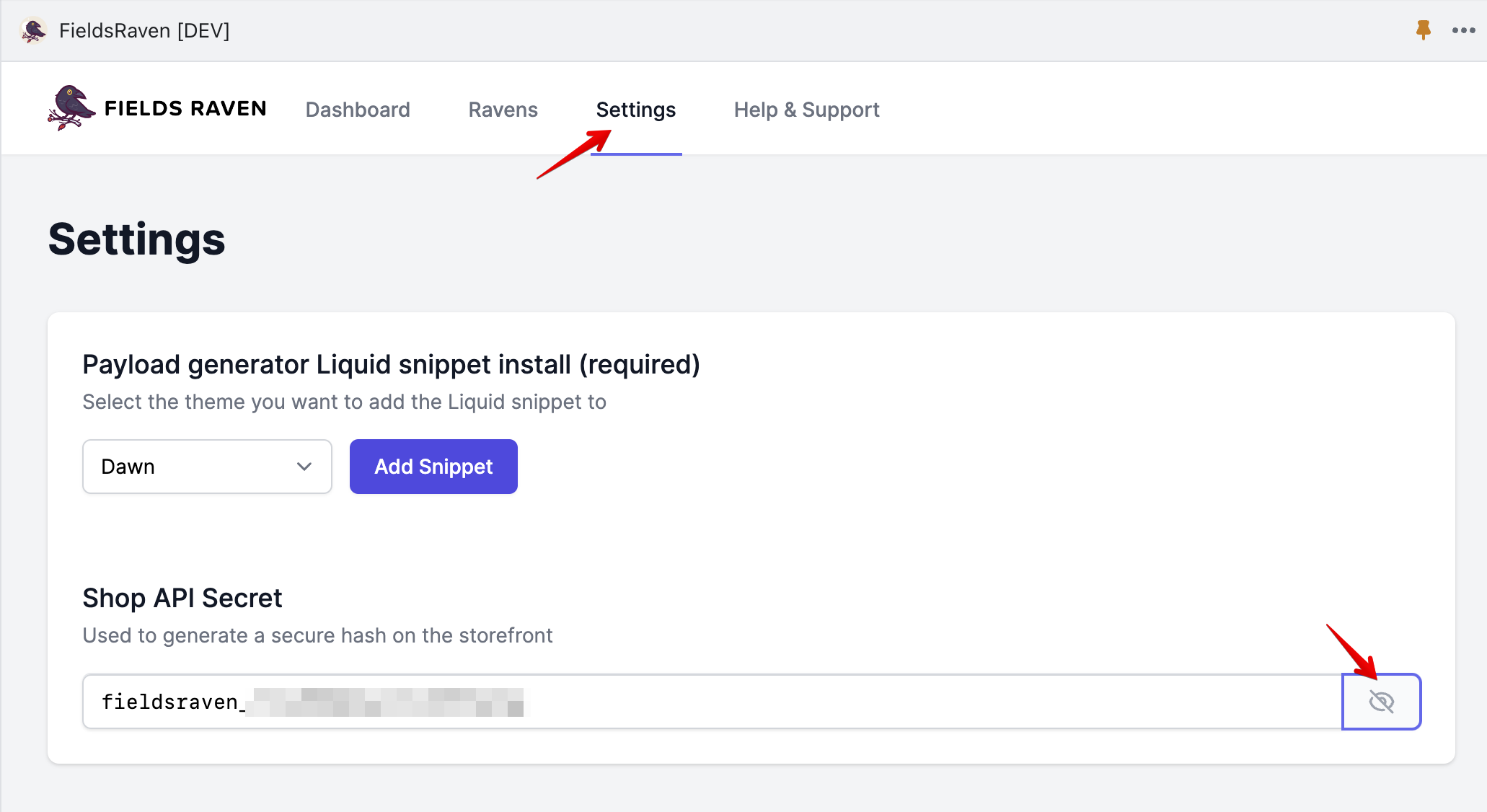

• The secret is missing from the shop. It's written at install, but occasionally that write fails. Check Settings — the secret is shown behind the eye icon. If it's absent, reach out.

• The digest was built from different values than the ones sent. The signed resource_id must be byte-identical to the resource_id in the payload. Signing customer.id and sending a product id fails, and so does signing on one page and posting from another.

• The MAC was generated for a different raven. Each raven signs with its own id.

valid_params in the same object separates "your parameters were malformed" from "your signature was wrong" — check which one is false before hunting the signature.

This is the shape returned by /apps/raven/create_metafield. The deprecated /apps/raven/create_update_metafield answers a missing raven or a bad signature with 400, not 422 — if you are debugging an older integration, check the status code first.

Customer email rejected

Invalid customer email

Only the email-as-identifier variant produces this: the address submitted isn't valid. For ordinary customer-owned ravens the customer id comes from the signed resource_id, so a logged-out visitor fails the signature check above rather than reaching this one — requests should be sent by a logged-in customer either way.

Rate limiting — 429

There are two different 429s, and they mean different things.

Shopify throttled the write

A 429 with a Retry-After header.

The header carries Shopify's own suggested delay, in seconds. Wait that long, then retry — the submission was not recorded as failed, and for ordinary writes FieldsRaven retries in the background on your behalf.

Your queue is too deep

A 429 without a Retry-After header.

Backpressure from FieldsRaven itself, not a Shopify limit. It clears as the queue drains. If it happens constantly rather than in bursts, you're submitting faster than Shopify will accept writes for your store; batch your submissions instead.

Generated code already handles the common case. If you hand-rolled your integration, treat a 429 as "retry shortly", never as a failed submission.

Deletes

DELETE /apps/raven/delete_metafield has two responses worth handling explicitly:

• 422 — Shopify refused the delete, and the message is Shopify's own. Older versions of FieldsRaven reported success regardless, so if your integration predates that fix, it may be treating failed deletes as successful. Worth re-checking.

• 429 with Retry-After — as above.

The metafield saves, but the value is wrong or empty

• Blank values are rejected for most types. Values are validated against the metafield's type before being sent. Use a type-appropriate empty value — 0 for numbers, {} for JSON — and handle the display in Liquid. To remove a metafield entirely, use the delete endpoint.

• A definition you created in Shopify admin may have validations of its own. If the metafield was defined there with rules — a maximum length, an allowed-values list, a numeric range — Shopify enforces them on write, and the failure surfaces as an error from Shopify rather than from FieldsRaven. Make sure the value you send satisfies the definition, and that its type matches.

The metafield doesn't appear immediately

Expected. A submission is accepted and acknowledged straight away, then written to Shopify in the background — so a 200 means queued, not stored. Add Shopify's own write time and its storefront cache on top. An unpublished theme reflects a new metafield sooner than a live one.

Two forms on one page and only the first works

The second form never bound. Form ids and the JavaScript global are derived from the raven's resource, namespace and key together; if you hand-wrote identifiers from the key alone, two ravens sharing a key produce duplicate ids, and getElementById returns only the first.

Regenerate both snippets from the Get Code panel, which derives collision-safe identifiers for you. See Quick Start.

Raven settings conflicts and partial saves

FieldsRaven protects Raven settings with a revision check so that one browser tab cannot silently overwrite changes saved from another tab or process.

• “This Raven changed in another session. Review the latest settings and try again.” FieldsRaven did not apply your stale edit. The form now shows the latest saved settings; review them and submit your change again.

• “Some remote changes may have completed, but this Raven was not saved…” A Shopify definition, pin, or customer-link action may have completed before the local Raven save encountered a conflict. Inspect the refreshed Raven settings and the related Shopify definition before retrying so you do not assume nothing happened.

• “This Raven was saved, but some remote follow-up work may be incomplete…” The local Raven settings were saved. Review the Raven's current status and Shopify setup before retrying the unfinished remote work.

Do not repeatedly submit the stale form. Start from the refreshed state FieldsRaven displays, confirm what Shopify already applied, set the Raven to your intended final configuration, and submit it once.

Metaobject sync issues

A metaobject failure never blocks the metafield write, so the submission's own status stays success and these are tracked separately — look at Failed Operations and the dashboard status badges rather than the submission list. See Metaobject sync.
